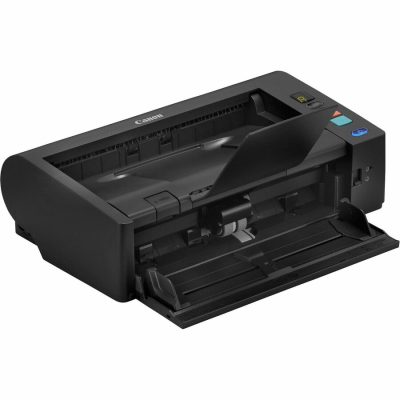

Canon imageFORMULA DR-M140II
Product Details

Canon imageFORMULA DR-M140II

DR-M140II

The Canon imageFORMULA DR-M140II A4 Desktop Sheet-Fed Scanner combines high-speed, high-quality scanning with a compact design, perfect for saving space in busy office environments. Made with up to 20% recycled plastics, this eco-conscious scanner offers a small footprint without compromising on performance. It efficiently scans a wide range of document types and produces high-quality images ideal for archiving or further editing. With intuitive features that streamline the scanning process, the DR-M140II is a powerful and environmentally friendly solution for businesses that require reliable, fast document handling.



Features

  • Scanning speeds of up to  80 ipm at 300 dpi
  • Dimensions of 313 x 181 x 93mm
  • Output resolution up to 1200 dpi
  • Suggested daily duty cycle of up to 8,500 pages

Additional Information

Get a Quote

For more information about this product please get in touch.

General Information
Type
  • Desktop Type Sheet Fed Scanner
Scanning Sensor Unit
  • CMOS CIS 1 Line Sensor
Optical Resolution
  • 600 dpi
Light Source
  • RGB LED
Scanning Side
  • Simplex / Duplex / Skip Blank Page / Folio
Interface
  • High Speed USB 2.0
Dimensions (WxDxH)
  • Tray Opened (feed and back): 313 x 288 x 93mm
Weight
  • Approx. 2.6kg
Power Requirements
  • AC100 – 240 V (50/60 Hz)
Power Consumption
  • Scanning: 24.5 W or less
  • In Sleep Mode: 1.6 W
  • Power OFF: 0.1 W or less
Operating Environment
  • 10 – 32.5°C (50 – 90.5°F), Humidity: 20 – 80% RH
Environmental Compliance
  • RoHS
Scanning Specifications
Black and White
  • 40 ppm / 80 ipm
Colour
  • 40 ppm / 80 ipm
Output Resolution
  • 100 x 100 dpi, 150 x 150 dpi, 200 x 200 dpi, 240 x 240 dpi, 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi, 1200 x 1200 dpi
Output Mode
  • Black & White, Error Diffusion, Advanced Text Enhancement, Advanced Text Enhancement II, 8-Bit Greyscale: (256-Level), 24-Bit Colour, Auto Colour Detection, Active Threshold
Suggested Daily Duty Cycle
  • From 6,000 to 8,500 scans/day
Document Specifications
Width
  • 50.8mm – 216mm
Length
  • 54mm – 356mm
Thickness
  • U-Turn: 0.04 – 0.15mm (27 – 128 g/m²)
  • Straight-through: 0.04 – 0.3mm (27 – 255 g/m²)
Long Document Mode
  • 5,588mm Max
Business Card Scanning
  • Straight-through: 50.8 – 91mm (Thickness 380 g/m² 0.45mm or less)
Paper Separation
  • Retard Roller Method (Reversing Separator Roller)
Feeder Capacity
  • 80 sheets
Special Features
  • Automatic Page Size Detection, Deskew, 3- Dimensional Colour Correction, Colour Dropout (RGB), Auto Colour Detection, Text Enhancement, MultiStream, Preset Gamma Curve, Prescan, Batch Separation (Patch Code / Blank Page / Counter / Barcode / Zonal OCR / Front page), Image Rotation, Skip Blank Page, Folio, Scan Area Setting, Text Orientation, Edge Enhancement, Moire Reduction, Prevent Bleed Through / Remove Background, Character Emphasis, Background Smoothing, Shadow Removal, Auto Resolution Setting, Erase Dot, Rapid Recovery, Double Feed Detection (Ultrasonic Sensor / By Length), Barcode and 2D Code Recognition
Bundled Software
Windows
  • ISIS / TWAIN Driver
    CaptureOnTouch Pro
Other Options
Consumables
  • Exchange Roller Kit
Options
  • A4 Flatbed Scanner Unit 102
  • A3 Flatbed Scanner Unit 202
