Canon imageFORMULA DR-M260
Product Details

Canon imageFORMULA DR-M260

dr-m260-fsl800x786

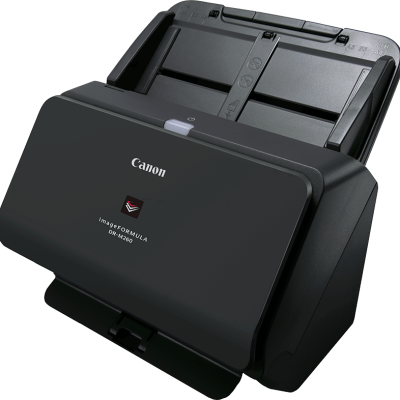

Experience the powerful performance of the Canon imageFORMULA DR-M260 for high-speed document scanning. With the ability to scan up to 60 pages per minute and an 80-sheet capacity, this scanner boosts workplace productivity and streamlines paper-heavy workflows. Its user-friendly design and intuitive LCD touch screen panel make operation easy, enabling quick access to key functions and settings. Ideal for busy offices, the DR-M260 is a reliable choice for efficiently capturing and converting high volumes of business documents into digital information.



Features

  • Large LCD panel with five-line display
  • Automatic page size detection
  • Ultrasonic double feed detection
  • New DR Processor

Additional Information

Get a Quote

For more information about this product please get in touch.

General Information
Type
  • Desktop Type Sheet Fed Scanner
Scanning Sensor Unit
  • CMOS CIS 1 Line Sensor
Optical Resolution
  • 600 dpi
Light Source
  • RGB LED
Scanning Side
  • Front / Back / Duplex
Interface
  • USB3.1 Gen1
Dimensions (W x D x H)
  • Trays Closed: 285 x 180 x 178mm
  • Trays Opened: 285 x 254 x 231mm
Weight
  • Approx.3.6kg
Power Requirements
  • AC 100-240 V (50/60 Hz)
Power Consumption
  • Scanning: 23 W or less
  • Sleep mode: 1.4 W or less
  • Power turned off: 0.1 W or less
Scanning Specifications
Black and White
  • 60 ppm / 120 ipm
Colour
  • 60 ppm / 120 ipm
Output Resolution
  • 150 x 150 dpi, 200 x 200 dpi, 240 x 240 dpi, 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi
Output Mode
  • Black & White/Error Diffusion/Advanced Text Enhancement, Advanced Text Enhancement II, 8-bit Greyscale (256-Level), 24-bit Colour
Suggested Daily Duty Cycle
  • Approx. 7500 scans
Document Specifications
Width
  • 50 – 216mm
Length
  • 54 – 356mm
Thickness
  • 27 – 413 g/m² (0.04 – 0.49mm)
Long Document Mode
  • 5588mm Max
Business Card Scanning
  • Size: 50mm x 91mm
  • Thickness: Less than 0.45mm
Postcard Scanning
  • Size: 89mm x 152mm
  • Thickness: Less than 0.45mm
Plastic Card Scanning
  • Size: 54 x 86mm
  • Thickness: Less than 1.4mm
Passport Scanning
  • Up to 6mm thick (via carrier sheet)
Paper Separation
  • Retard Roller Method
Feeder Capacity
  • 80-sheets (80 g/m²)
Special Features
  • New DR Processor giving High Speed/quality image processing, Five line LCD Operation panel, Automatic Page Size Detection, Full Auto Mode, Deskew, 3-Dimensional Colour Correction, Colour Dropout (RGB), Colour Enhancement (RGB), Character Emphasis, Text Orientation Recognition, Auto Colour Detection, Shadow Cropping, Adjustable gamma settings, Skip Blank Page, Folio Mode, MultiStream™ support, Batch Separation with blank page or patchcode, Moiré Reduction, Prevent Bleed Through/Remove Background, B&W Contrast, Background Smoothing, Shadow Cropping, Auto Resolution Setting, Ultrasonic Double Feed Detection, Double Feed Release, Separation Retry
Bundled Software
Windows
  • ISIS /TWAIN Driver (Microsoft Windows 7 SP1, 32 bit/64 bit, Microsoft Windows 8.1 32 bit/64 bit, Microsoft Windows 10-32 bit/64 bit, Microsoft Windows Server 2008 R2 SP1, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016)
  • CapturePerfect
  • CaptureOnTouch
  • Kofax VRS
Consumables
  • Exchange Roller Kit
  • Carrier sheet (Passport)
  • Carrier Sheet (A4)
Accessories
  • A4 Flatbed Scanner Unit 102
    A3 Flatbed Scanner Unit 202
    NA10 or WA10 Network Adapter
