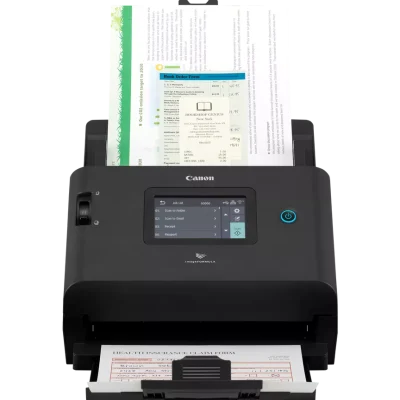

Canon imageFORMULA DR-S350NW
Product Details

Canon imageFORMULA DR-S350NW

dr-s350nw_hero_503a179795954b32bae21d1b1896c341

The Canon imageFORMULA DR-S350NW is a high-speed, network-ready scanner built for seamless document digitization. With Wi-Fi, Ethernet, and USB connectivity, it offers flexible integration into any office setup. Equipped with advanced OCR and barcode recognition, it ensures accurate data extraction for efficient workflows. The DR-S350NW handles up to 6,000 scans daily and supports a variety of document types, including thick paper, passports, and plastic cards. Its user-friendly touch panel simplifies operation, while robust design ensures reliability in demanding environments.

Features

  • 60 sheets ADF capacity
  • 4.3” colour LCD touch panel
  • CaptureOnTouch Lite Web software
  • Flexible connectivity with USB, LAN and WiFi

Additional Information

Get a Quote

For more information about this product please get in touch.

General Information
Type
  • Desktop type double-sided capturing sheet fed scanner
Scanning Sensor Unit
  • CIS
Optical Resolution
  • 600 dpi
Light Source
  • RGB LED
Scanning Side
  • Front / Back / Duplex
Interface
  • USB: USB3.2 Gen1
  • Ethernet: 10Base-T/100Base-TX/1000Base-T​
  • Wi-Fi: 802.11a,b,g,n,ac​
  • USB host: USB2.0 Type A (Only for NFC reader）​
Dimensions (WxDxH)
  • Tray closed: 291 x 267 x 242 mm
Weight
  • Approx. 3.4kg
Power Requirements
  • 220 – 240 V (50/60 Hz)
Power Consumption
  • Scanning: 28 W or less
  • In sleep mode: 2 W
  • Power off: 0.3 W or less
Operating Environment
  • 10°C to 32.5°C Humidity: 20% to 80% RH
Environmental Compliance
  • Product: EPEAT Gold2, Energy STAR3, RoHS
  • Manufacturer: ISO 9001, ISO 14001, ISO 45001, ISO 13485, ESG
  • Certification (SGS)
Scanning Specifications
Black and White
  • 50 ppm / 100 ipm
Colour
  • 50 ppm / 100 ipm
Output Resolution
  • 100/150/200/3240/300/400/600 dpi
Output Mode
  • Colour, Grayscale, Black & White
Suggested Daily Volume
  • from 6,000 to 9,000 scans/day
Document Specifications
Width
  • 50.8 – 216mm
Length
  • 54 – 356mm
Thickness
  • 27 g/m2 – 255 g/m2 (0.04 – 0.3mm)
Pressure-Sensitive Paper
  • Feeding only from binding side.
Hole Punched Paper
  • Up to 8mm
  • 2/3/4 holes paper only
Long Document Mode
  • Up to 5,588mm
Business Card Scanning
  • Width: 50-55mm
  • Length: 85-91mm
  • Thickness: 128～255 g/㎡ 0.15-0.3mm)
  • Horizontal feeding only
Plastic Card Scanning
  • Width: 86mm
  • Length: 54mm
  • Thickness: 1.4mm or less​
  • Embossed card available
  • Loading number: 3 cards (non-embossed; 1 card (embossed/non separation）
Passport Scanning
  • Thickness: 4mm or less – 300 dpi or less
  • Need optional carrier sheet for passport and passport mode setting
Paper Separation
  • Retard Roller Method
Feeder Capacity
  • A4: 60 sheets
  • Larger than A4: 40 sheets
Special Features

Web Scan (without driver):

  • Web browser scanning with any device on same network by embedded CaptureOnTouch Lite Web (Supports QR code connection, OCR recognition, Ultrasonic Double Feed Detection, Passport mode, Skip Blank Page, Auto Page Size Detection, Password protection)

Direct Scan (without driver):

  • Direct job scanning from panel for standalone operation. (Scanto Share folder, FTP/FTPS/SFTP/, Mail, Printer. Supports OCR recognition, Image Preview, Ultrasonic Double Feed Detection, Passport mode, Skip Blank Page, Auto Page Size Detection)

Settings (with driver):

  • Ultrasonic Double Feed Detection, Auto Colour Detection, Skip Blank Page, Auto Page Size Detection, Auto Resolution Setting, Text Orientation, Recognition, Barcode/2D Code Recognition, OCR Recognition, Batch separation, Active Threshold, Text Enhancement (I/II), Deskew, Double Feed Release, Prescan, 3-Dimensional, Colour Correction, Prevent Bleed-Through/ Remove Background, Background Smoothing, Character Emphasis, Colour Dropout/Enhance (RGB), , MultiStream Function, Adjustable Gamma Settings, Moire Reduction, Folio Mode, Reduction ratio adjustment, B&W Contrast, Reverse Image, Rapid Recovery System
Bundled Software
Windows
  • ISIS, TWAIN and WIA Driver / CaptureOnTouch Pro / Canon imageFORMULA Driver Setting Tool / IEEE 802.1X Setting Tool, / DR-Management Tool (by download only)/ CoT Admin Tool (by download only)
Mac
  • TWAIN Driver / CaptureOnTouch
Supported Operating Systems
  • CaptureOnTouch Lite Web (device embedded web app) Supports Chrome OS, and Mopria scan certified
Other Options
Consumables
  • Exchange Roller Kit
Accessories
  • Flatbed Scanner Unit 102
  • Flatbed Scanner Unit 202
  • A4 Carrier Sheet
  • Passport Carrier Sheet
