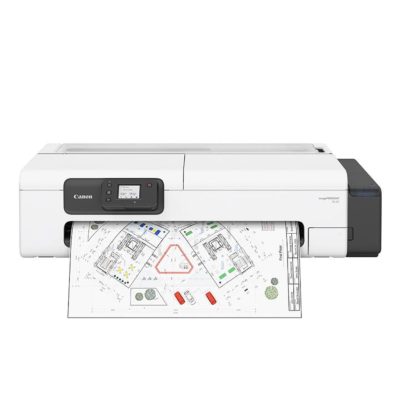

Canon imagePROGRAF TC-21
Product Details

Canon imagePROGRAF TC-21

digital-os-oce-3500

The New Canon imagePROGRAF TC-21 24″ large format printer is perfect for small spaces. With its Sleek design the TC-21 fits into any workspace, providing high quality prints and various media sizes from A4, A3, A6 and A1. The Canon PROGRAF no longer requires traditional ink cartridges due to the new refillable Pigment ink which can be topped up as you like. Switch easily between home and office with the integrated Hybrid support. Further more you can have two options depending on your printing needs the PROGRAF can either be placed on a stand and basket or a basket which simply clips to your desktop to allow a handy print collection system. The TC-21 is also built with an EPEAT Gold rating for its energy efficiency, packaging free from expanded polystyrene foam (EPS), and usage of 40% recycled plastic helping reduce environmental impact without compromising performance.



Toner Details:

5698C001AA Canon PFl-050 Black Ink Tank – 70ml Cartridge
5699C001AA Canon PFl-050 Cyan Ink Tank – 70ml Cartridge
5701C001AA Canon PFl-050 Yellow Ink Tank – 70ml Cartridge
5700C001AA Canon PFl-050 Magenta Ink Tank – 70ml Cartridge

Features

  • 4-colour pigment ink Improved image quality
  • Compact size 968 x 533 x 245 mm
  • Tiltable operation panel
  • Built-in auto sheet feeder
  • 24″ large format printer
  • Effortless connectivity
  • EPEAT Gold rating

Additional Information

Get a Quote

For more information about this product please get in touch.

Printer Type
  • 4 Colour 24″
Print Technology
  • Canon Pigment ink 4 colours integrated type (4 chips per print head x 1 print head)
Print Resolution
  • 2,400 x 1,200 dpi
Number of Nozzles
  • Total : 4352 nozzles BK : 1280 nozzles C, M, Y : 1024 nozzles each
Line Accuracy
  • ±0.1% or less
  • User adjustments necessary. Printing environment and media must match those used for the adjustments.
Nozzle Pitch
  • 1,200 dpi x 2 lines
Ink Capacity
  • Bundled Starter Ink: 280ml (70mlx4 for BK, C, M, Y)
  • Sales Ink: 70ml (BK, C, M, Y)
Ink Type
  • Pigment inks : 4 colour BK/C/M/Y
OS Compatibility
  • 32 Bit: Windows7, Windows 8.1, Windows 10
  • 64 Bit: Windows 7, Windows 8.1, Windows 10, Windows 11,
    Windows Server 2008R2, 2012, 2012R2, 2016, 2019, 2022, 2025
    Apple Macintosh: macOS 11.7.10~macOS 14.15
Other Supported Job Submission Protocols
  • Apple AirPrint, Mopria, Chrome OS
Printer Languages
  • N/A (no direct print supported)
Standard Interfaces
  • USB A Port: N/A
  • USB B Port: Hi-Speed USB
  • Ethernet: IEEE802.3u(100BASE-TX) / IEEE802.3(10BASE-T)
  • Wireless LAN*: IEEE802.11n/IEEE802.11g/IEEE802.11b/IEEE802.11a/ IEEE802.11ac*Please refer to user manual how to activate/deactivate the wireless LAN
Memory
Standard Memory
  • 1GB
  • Expansion slot : No
Hard Drive
  • N/A
Print Speed
CAD Drawing
  • Plain paper (A1, B&W):
    0:30 (Standard)
  • Plain Paper (A1, Colour):
    1:00 (Standard)
Poster
  • Plain Paper (A1)
    1:01 (Draft)
  • 1:51 (Standard)Coated Paper (A1)
    2:42 (Draft)
    4:23 (Standard)
Media Handling
Media Feed and Output
  • Roll Paper : One Roll, Front-loading, Front Output
  • Cut Sheet : Auto sheet feeder, Face-up, Front side
Media Width
  • Roll paper : A3, A2, A2+, A1, B2, B3, 18”, 24”, 17”
  • Cut sheet: A3, A4, A5, A6, B4, B5, B6, C4, Ledger, Letter, Legal, Foolscap, Executive, ARCH A, Photo (10″x12″, 10″x15″, 8″X10″, 7″X10″, 5″x7″, 4″x6″(KG), 2L, L), Envelope (Com 10, DL, C5, Monarch), B-Oficio, M-Oficio, user-defined size (width: 89 mm – 297mm, length: 127mm – 1200mm)
Media Thickness
  • Roll/Cut : 0.08mm – 0.28mm
Minimum Printable Length
  • Roll paper: 203.2mm
  • Cut sheet: 127mm
Maximum Printable Length
  • Roll paper : 4m
  • Cut sheet : 1200mm
Maximum Media Roll Diameter
  • 110mm
Media Core Size
  • Internal diameter of roll core: 2″
Margins Recommended Area
  • Roll paper: Top: 5mm, Bottom: 5mm, Side: 5mm
    (some photo mode: Top: 30mm, Bottom: 30mm)
  • Cut sheet: Top: 5mm, Bottom: 5mm, Side: 5mm
Margins Printable Area
  • Roll paper: Top: 5mm, Bottom: 5mm, Side: 5mm
    (some photo mode: Top: 30mm, Bottom: 30mm)
  • Roll paper (minimal margin print): Top: 0mm, Bottom: 0mm, Side: Approx. 0.5mm
    Cut sheet: Top: 5mm, Bottom: 5mm, Side: 5mm
Media Feed Capacity
  • Roll Paper: One roll
  • Cut Sheet: A4, Letter: 100 sheets (plain paper)
    A3, B4, Ledger, Legal, 10″ x 12″, 10″ x 15″: 50 sheets (plain paper)
    FS, Foolscap, ARCH A, C4, B-OFICIO, M-OFICIO: 10 sheets (plain paper)
  • Others: 1 sheet
Media Take-Up Roll Unit
  • N/A
Borderless Printing Width (Roll Only)
  • A4, A3, A2, A1, B4, B3, B2, 17”, 18”, 24”
    Top/Bottom: Fully borderless; Left/Right: Approx. 0.5mm margin
Maximum Number of Delivered Prints
  • Stand Basket (SD-24) / Desktop Basket (BU-06): Standard position – 1 sheet
Power and Operating Requirements
Power Supply
  • AC 100-240V (50-60Hz)
Power Consumption
  • Operation: Approx. 28W
  • Sleep mode: Approx. 2.3W
  • Default setting for the time to enter the Sleep mode: Approx. 5 minutes
  • Power off: Approx. 0.07W
Operating Environment
  • Temperature: 15~30℃, Humidity: 10~80% RH (no dew condensation)
Acoustic Noise (Power/Pressure)
  • Operation: Approx. 41.5 dB(A)
    (Plain paper, Standard mode, Line Drawing/Text mode)
  • Standby: 35 dB(A) or less
    (Measured on ISO 7779 standard)Operation: Approx. 6.0 Bels
    (Standard Plain Paper, Standard mode, Line Drawing/Text mode)
    (Measured on ISO 7779 standard)
Regulations
  • CE mark, UKCA mark
Environment Certificates
  • CB certfication, EPEAT GOLD
Dimensions and Weight
Physical Dimensions and Weight
  • W x D x H
  • Main Unit
    968 x 533 x 245 mm (ASF closed, operation panel not tilted)
    968 x 593 x 245 mm (ASF closed, operation panel tilted)
    968 x 613 x 395 mm (ASF opened, operation panel tilted)
  • 32 kg (exclude ink bottle, include print head)Main Unit + Desktop Basket (BU-06)
    968 x 595 x 965* mm
    (ASF closed, operation panel not tilted, basket closed)
    968 x 845 x 1115* mm
    (ASF opened, operation panel tilted, basket opened)
  • 33 kg (exclude ink bottle, include print head)Main Unit + Stand + Basket (SD-24)
    968 × 720 × 874 mm
    (ASF closed, operation panel not tilted, basket closed)
    968 × 868 × 1024 mm
    (ASF opened, operation panel tilted, basket opened)
  • 43 kg (exclude ink bottle, include print head)*Height above which cloth does not touch the floor when opening the desktop basket.
Packaged Dimensions and Weight
  • Printer (Main unit): 1120 x 726 x 406 mm, 45kg
  • Desktop Basket (BU-06): 798 x 301 x 111 mm, 2.0kg
  • Stand + Basket (SD-24): 1058 x 826 x 270 mm, 20kg
What’s Included
What’s in the Box?
  • Printer, 1 Print head, Power Cable, 1 Set of starter ink tanks, Installation Guide, Safety and Environmental Information, LFP Eur Address Sheet, Notice for PosterArtist WEB US/EU, Flange protective materials sheet
Software Included
  • Software available as Download from Web
Options
Optional Items
  • Desktop Basket: BU-06
  • Printer Stand and Basket: SD-24
Consumables
User Replaceable Items
  • Ink Tank: PFl-050 (70ml)
  • Print Head: PF-08
  • Maintenance Cartridge: MC-32
