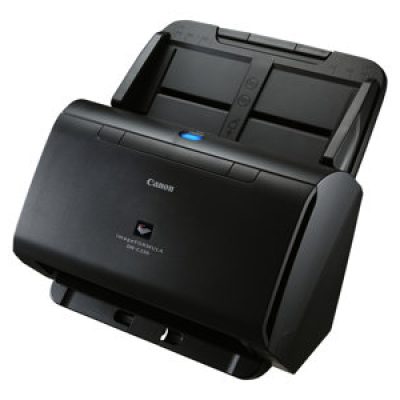

Canon imageFORMULA DR-C230
Product Details

Canon imageFORMULA DR-C230

f10560ee-da57-479a-b388-a8b9abfa1dd6

If your business requires a scanner that boosts productivity and handles a variety of different documents, look no further than the imageFORMULA DR-C230. This ultra-compact and powerful desktop scanner is robust and offers reliable paper handling for capturing multiple document sizes and formats, including passports. With fast 2-sided scanning at speeds of up to 60 ppm, it is designed with busy offices and customers’ needs in mind, keeping downtime to a minimum.



Features

  • 60 sheet automatic document feeder
  • Scans of up to 30 ppm/60 ipm
  • Ultrasonic double feed detection and double feed release (DFR) functions

Additional Information

Get a Quote

For more information about this product please get in touch.

General Information
Type
  • Desktop Type Sheet Fed Scanner
Scanning Sensor Unit
  • CMOS CIS 1 Line Sensor
Optical Resolution
  • 600 dpi
Light Source
  • RGB LED
Scanning Side
  • Front / Back / Duplex
Interface
  • High speed USB 2.0
Dimensions (W x D x H)
  • Trays Closed: 291 x 253 x 231 mm
  • Trays Opened: 291 x 603 x 363 mm
Weight
  • Approx. 2.8kg
Power Requirements
  • AC 100-240 V (50/60Hz)
Power Consumption
  • Scanning: 19 W or less
  • Sleep mode: 1.4 W or less
  • Power turned off: 0.1 W or less
Operating Environment
  • 10 – 32.5 °C
  • Humidity: 20 – 80% RH
Environmental Compliance
  • RoHS and ENERGY STAR
Scanning Specifications
Black and White
  • 30 ppm / 60 ipm
Colour
  • 30 ppm / 60 ipm
Output Resolution
  • 150 x 150 dpi, 200 x 200 dpi, 240 x 240 dpi, 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi
Output Mode
  • Black & White/Error Diffusion/ Advanced Text Enhancement, Advanced Text Enhancement II, 8-bit Greyscale (256-Level), 24-bit Colour
Suggested Daily Duty Cycle
  • Approx. 3500 scans
Document Specifications
Width
  • 50.8 – 216mm
Length
  • 54 – 356mm
Thickness
  • 27 – 209 g/m² (0.06 – 0.25mm)
Long Document Mode
  • 3000mm Max
Business Card Scanning
  • Size: 50.8 x 85mm or larger
  • Thickness: Less than 0.45mm
Plastic Card Scanning
  • Size: 53.9 x 85.5mm
  • Thickness: 0.76mm (Embossed Card up to 1.4mm thick is supported)
Passport Scanning
  • Up to 4mm thick (via carrier sheet)
Paper Separation
  • Retard Roller Method
Feeder Capacity
  • 60-sheets (80g/m²)
Special Features
  • Automatic Page Size Detection, Deskew, 3-Dimensional Colour Correction, Colour Dropout (RGB), Colour Enhancement (RGB), Auto Colour Detection, Shadow Cropping, MultiStream, Adjustable gamma settings, Skip Blank Page, Folio Mode, Scan Area Setting, Batch Separation with white blank sheet or patchcode, Moiré Reduction, Prevent Bleed Through/Remove Background, Contrast Arrangement, Background Smoothing, Shadow Cropping, Auto Resolution Setting, Double Feed Release, Double Feed Detection (Ultrasonic Sensor, Length)
Bundled Software
Windows
  • ISIS /TWAIN Driver (Windows 7 SP1/ 8.1/ 10. Windows Server 2008 R2 SP1 / Server 2012 R2 / Server 2016), CapturePerfect, CaptureOnTouch V4
Mac
  • Supports <Mac> 10.10, 10.11, 10.12
Other Options
Consumables
  • Exchange Roller Kit
  • Carrier sheet (Passport)
  • Carrier Sheet (A4)
Accessories
  • Flatbed Scanner Unit 102
  • Flatbed Scanner Unit 201
  • NA10/WA10 Network Adapters
  • Carrying Case
