imageFORMULA DR-C225 II
Product Details

imageFORMULA DR-C225 II

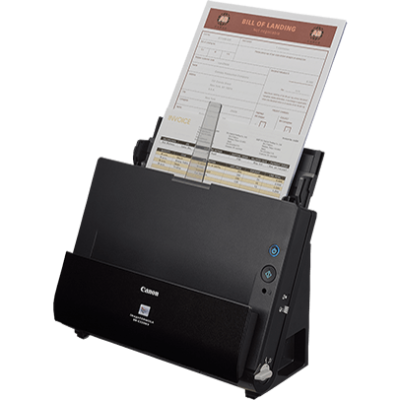

dr-c225w-ll-fsl-04_800x406_267572969126704

The imageFORMULA DR-C225 II is an ultra slim desktop scanner designed to fit into small spaces, making it ideal for offices that need to optimise their space. It offers quick duplex scanning with up to 50 images per minute and 25 pages per minute. The ultrasonic double feed detection ensures solid paper handling to aid the fast scan speeds. The CapturOnTouch software helps streamline the scanning process and the one touch operation means tricker tasks can be completed seemlessly.

Features

  • Windows and Mac compatible
  • Optical resolution of 600 dpi
  • CaptureOnTouch software
  • 45 sheet Automatic document feeder

Additional Information

Get a Quote

For more information about this product please get in touch.

General Product Information
Type
  • Desktop Type Sheet Fed Scanner
Scanning Sensor Unit
  • CMOS CIS 1 Line Sensor
Optical Resolution
  • 600 dpi
Light Source
  • RGB LED
Scanning Side
  • Simplex / Duplex / Folio / Skip Blank Page
Interface
  • High speed USB 2.0 (USB 3.0 compatible)
Dimensions (W x D x H)
  • Tray Closed: 300 x 156 x 220mm
  • Tray Opened: 300 x 235 x 339mm
Weight
  • Approx. 2.8kg
Power Requirements
  • AC100 – 240 V (50/60 Hz)
Power Consumption
  • Scanning: 12.7 W or less
  • Sleep Mode: 1.8 W or less
  • Power Turned Off: 0.5 W or less
Operating Environment
  • 10 – 32.5 °C (50 – 90.5 °F), Humidity: 20 – 80% RH
Environmental Compliance
  • RoHS
Scanning Specifications
Black and White
  • 25 ppm/50 ipm
Colour
  • 25 ppm/50 ipm
Output Resolution
  • 150 dpi, 200 dpi, 300 dpi, 400 dpi, 600 dpi
  • Auto Resolution Setting
Colour Mode
  • Detect Automatically
  • Black and White
  • Error Diffusion
  • Advanced Text Enhancement I
  • Advanced Text Enhancement II (Windows only)
  • 256-Level Grayscale
  • 24-bit Colour
Daily Duty Cycle
  • from 1,000 to 2,500 scans/day
Document Specifications
Width
  • J-Path: 50.8 – 216mm
  • Straight Through: 50.8 – 216mm
Length
  • J-Path: 70 – 356mm
  • Straight Through: 53.9 – 356mm
Thickness
  • J-Path: 52 – 128g/m² (0.06 – 0.15mm)
  • Straight Through: 40 – 209g/m² (0.05 – 0.25mm)
Long Document Mode
  • Straight Through: Up to 3000mm
Card Scanning
  • Straight Through: 53.9 x 85.5mm, Thickness less than 0.76mm (Embossed Card is supported)
Paper Separation
  • Retard Roller Method
Feeder Capacity
  • 45-sheets (A4, 80g/m²)
Special Features
Image Processing
  • Background Smoothing
  • Prevent Bleed Through/Remove Background
  • Erase Shadow
  • Colour Dropout (RGB)
  • Colour Enhancement (Red)
  • Moire Reduction
Double Feed Detection
  • Ultrasonic Sensor / By Length
Others
  • Automatic Page Size Detection
  • MultiStream
  • Prescan
  • Text Orientation Recognition
  • Deskew
  • Image Rotation
  • Job Setting
Bundled Software
Windows
  • ISIS /TWAIN Driver (Windows 2000/XP Pro/XP Home/Vista/7/8/10)
  • CaptureOnTouch Pro
  • CardIris
Mac
  • ISIS / TWAIN Driver
  • CaptureOnTouch
Other Options
Consumables
  • Exchange Roller Kit
Accessories
  • A4 Flatbed Scanner Unit 102
  • A3 Flatbed Scanner Unit 202
  • Carrying Case
